RS-GACEN60x5 • Steelflex Sling • 5′

Steeflex wire rope core roundsling, 5 foot length, pro audio

Description

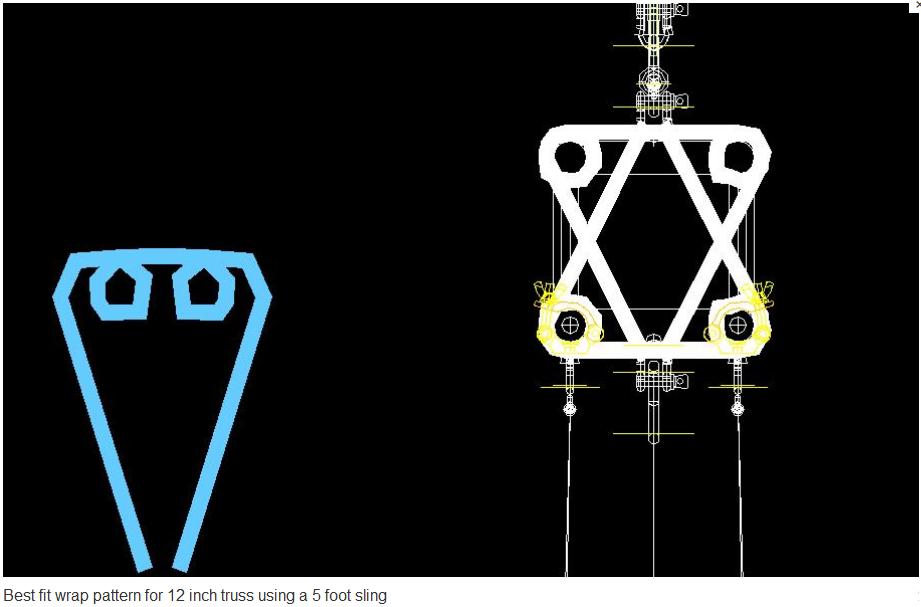

Steelflex Sling. Wire rope core roundsling, 5′ length, WLL = 5300 pounds for vertical load. This is the sling that best fits a 12″ truss. See the images below showing the loose wrap pattern on the left, and the wrap pattern in scale with a 12″ truss on the right.

The right hand section of the image shows the same sling wrap facing up to support the truss ends, and facing down for a center load. We recommend a SH-625-B 5/8″ or SH-500 1/2″ shackle to implement this wrap.

Pro audio rigging design, roof attachment, supplemental structure, sales, support and PE stamped drawings for all 50 US states and Canada provided by Polar Focus. Call us today for more information at (413) 586-4444.
