Description

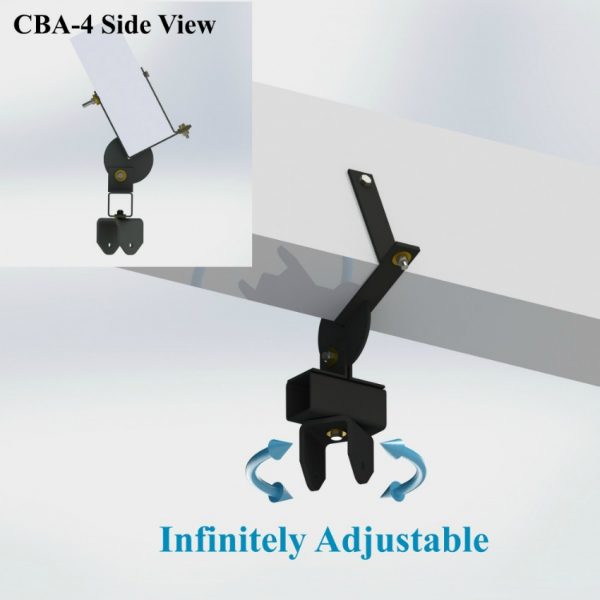

Polar Focus Type 4 Custom Beam Attachment with PY1 Quick Disconnect Fitting allows a cluster to be mounted to a rolled large wooden or glue-lam beam with pan control. Through intelligent application of Polar Focus components, precision pan and tilt adjustment may also be accomplished with minimal time and effort. The end result is a liability minimizing high design factor system that can save time and money in both the short and long run.
Sometimes there is just no way to safely attach to a roof structure with any stock components for a speaker rigging project. This is especially true when attaching to large laminated or solid wood beams in house of worship installations. Please note, wood laminated beams are frequently sized slightly off (larger) than the architectural drawings may indicate. Also, a beam at one end of the building may be slightly different than a beam at the other end. We prefer to build to actual measurements of the specific beam under consideration.
Sloped steel beams also may require custom beam attachment since standard beam clamps are not rated for use on sloped beams, and some jurisdictions will not allow for a friction connection on a sloped beam.
Polar Focus PY1 Quick Disconnect Fitting allows an easy connection to our wide range of line array accessories.
Pro audio rigging design, roof attachment, supplemental structure, sales, support and PE stamped drawings for all 50 US states and Canada provided by Polar Focus. Call us today for more information at (413) 586-4444.
