OCL-IV6-GP-AF • Glidepoint Frame for Community IV6

Polar Focus Glidepoint line array frame for Community Professional Loudspeakers IV6 modular arrays. We offer a full line of audio rigging equipment for Community loudspeakers and line arrays.


Polar Focus Glidepoint line array frame for Community IV6 modular vertical arrays. Also available in white or custom color powdercoat. WLL: 1300 lbs (589.7 kg). Designed to suspend a maximum of 16 IV6-1122, or 9 subwoofers in a single indoor array with a 10:1 safety factor.

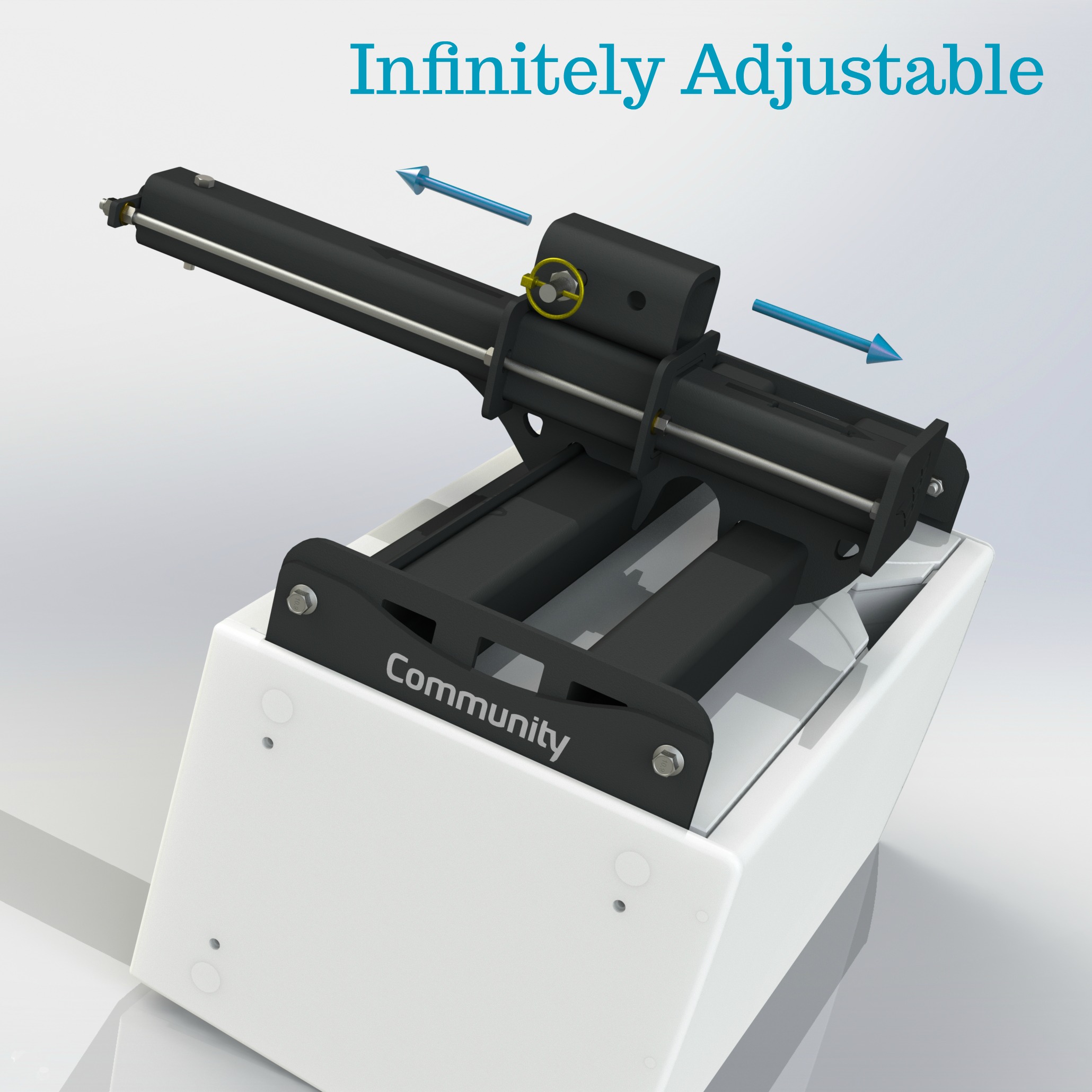

Designed for an improved range of functionality and ease of installation, the IV6-GP-AF is the array frame for the Community Professional Loudspeakers IV6 loudspeakers. The Glidepoint frame fastens to the loudspeakers using the integrated side plate rigging hardware included with the IV6 module. The mate points are made with high strength steel to facilitate a safe load point with an improved service life. The Glidepoint frame features infinitely adjustable tilt control while under load without requiring re-rigging the cluster, or using chain hoists. Powder coated black, white, custom color, or galvanized.

This product is compatible with any Polar Focus product with a part code beginning with ‘PY0’ or ‘PY1’.

Pro audio rigging design, roof attachment, supplemental structure, sales, support and PE stamped drawings for all 50 US states and Canada provided by Polar Focus. Call us today for more information at (413) 586-4444.
