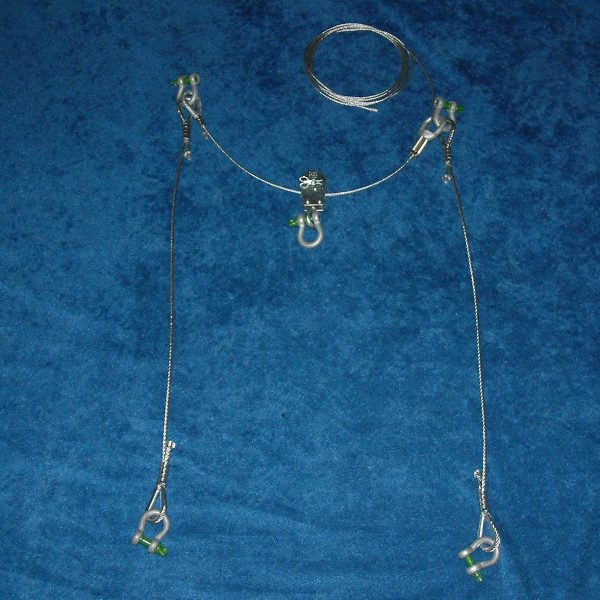

TCK-26-250-S • Tilt Cable Kit

Polar Focus Tilt Cable Kit TCK-26-250-S for loudspeaker rigging. We offer a full line of audio rigging equipment for loudspeakers and line arrays.

Description

Polar Focus Tilt Cable Kit TCK-26-250-S with 26 x 3/16″ front wire rope assemblies, 250 pound WLL. For use with Struts.

Polar Focus adjustable Tilt Cable Kit is a companion to the Polar Focus Zbeam and XY Grid components. It can also be used as a stand-alone speaker rigging kit. It provides rapid tilt control for single loudspeakers or a group of loudspeakers locked together. The ratcheting action of the Clutch Lock allows for tilt adjustments to be completed in just seconds.

A standard adjustable Tilt Cable Kit contains all the hardware needed to connect to a Zbeam, XY Grid, Rigging Chain Sling kits, or beam clamps down to meet your eyebolts or other speaker rigging points. Structural support is provided by the two fixed length 3/16″ galvanized wire rope assemblies with a Working Load Limit of 420 pounds (190 kilograms) each. Indicated Working Load Limits are for typical configurations.

Special configuration Tilt Cable Kits are available.

Pro audio rigging design, roof attachment, supplemental structure, sales, support and PE stamped drawings in any US State and Canada provided by Polar Focus. Call us today for more information at (413) 586-4444.
